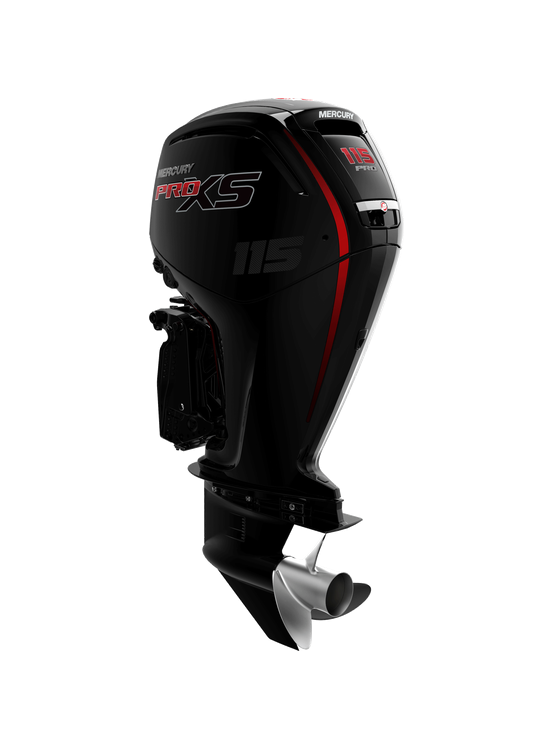

07 4637 9511Unbridled power, unexpectedly compact, uncompromising reliability, unbelievable fuel efficiency. Unlike any other mid-range Four-stroke the world has ever seen.
HP/KW |
115/86 |
ENGINE TYPE |
8 valve single overhead cam (SOHC) Inline 4 |
DISPLACEMENT (L) | 2.1 |
FULL THROTTLE
RPM |
5300-6300 |
AIR INDUCTION | Performance-tuned scroll intake manifold |
FUEL INDUCTION SYSTEM | Computer controlled multi-port electronic fuel injection (EFI) |
ALTERNATOR
AMP/WATT |
35 amp/ 441 watt with water cooled voltage regulator |
RECOMMENDED
FUEL |
Unleaded Regular 87 Octane minimum or 90 RON 10% Ethanol maximum |
RECOMMENDED OIL | NMMA Certified FCW SAE 10W-30 |
ENGINE
PROTECTION OPERATOR |
SmartCraft Engine Guardian |
COMPATIBLE
WITH SMARTCRAFT |
Yes |
STARTING | Smart Start Electric Electric (turn-key) |
CONTROLS | Mechanical throttle & shift |
STEERING |
Big tiller
compatible Dual cable mechanical Hydraulic power steering |
SHAFT LENGTH |
20"/508mm 25"/635mm |
GEARCASE RATIO |
2.07:1 (2.38:1 Command Thrust) |
DRY WEIGHT |
359lbs/163kg (363lbs/165kg Command Thrust) |
BORE &
STROKE |
3.5 x 3.2"/ 90 x 81mm |
IGNITION |
SmartCraft ECM 70 Digital Inductive |
FUEL SYSTEM |
Electronic
Fuel Injection (EFI) |
COOLING SYSTEM |
Water-cooled
with thermostat |
GEAR SHIFT |
F-N-R |
GEARCASE
OPTIONS |
Standard / Command Thrust |
TRIM SYSTEM |
Power Tilt |
EXHAUST SYSTEM |
Through Prop |
SHALLOW WATER
TRIM RANGE |
20 deg |
COLOUR |
Phantom Black |
LUBRICATION
SYSTEM |
Wet sump |
OIL CAPACITY | 5.2L |
MAXIMUM TRIM RANGE | 22 deg (-6 to 16deg) |
MAXIMUM TILT RANGE | 70 deg (-6 to 64deg) |
Exclusive Versatility
Two exclusive features give the 115 Pro XS the versatility to outperform on a wide range of applications.
Keeps your battery charged
The Idle Charge feature monitors your battery’s voltage state, and will increase the engine rpm in order to provide up to 48% more battery charging at idle. This supports the greater power demands of today’s sophisticated marine electronics and accessories, letting boaters and anglers safely stay out on the water longer.
Choice of Champions
Pro XS is the best-selling tournament fishing outboard in the world, and has powered more competitive anglers to victory than any other engine. Run with the same confidence professional tournament anglers have – trust Pro XS.
