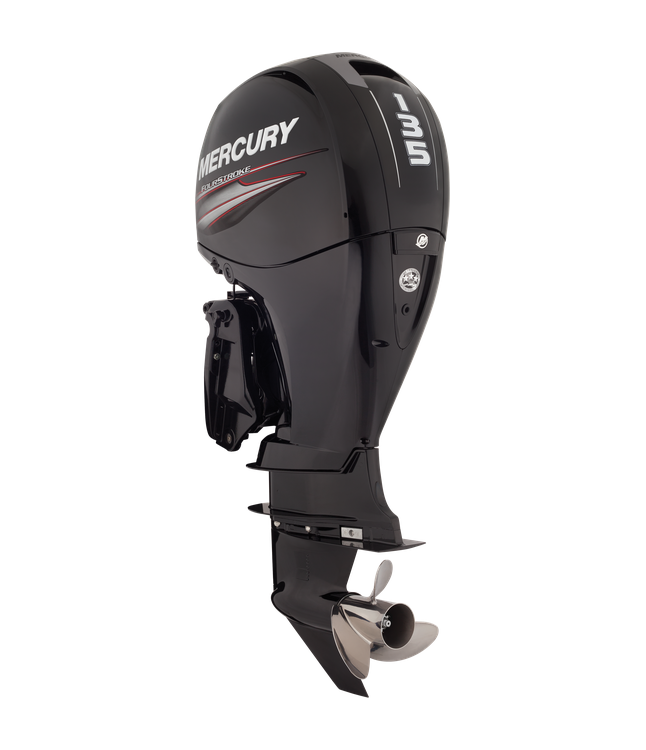

07 4637 9511Smarter. Lighter. More durable. Class leading power that has set the boating world on fire. Massive displacement & the lightest Four Stroke in its class.
|
HP/KW |
135/101 |
|
ENGINE TYPE |

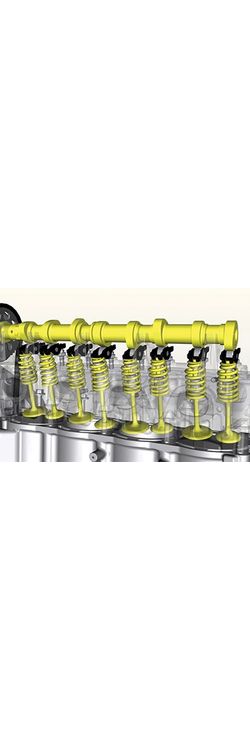

8 valve single overhead cam (SOHC) Inline 4 |
|
DISPLACEMENT (L) | 3.0 |
|
FULL THROTTLE RPM | 4800-5300 |
| AIR INDUCTION | Performance-tuned scroll intake manifold |
|
FUEL INDUCTION SYSTEM | Computer controlled multi-port electronic fuel injection (EFI) |
|
ALTERNATOR
AMP/WATT |
60 amp/ 756 watt (Belt-driven) |
|
RECOMMENDED
FUEL |
Unleaded 91 RON minimum |
|
RECOMMENDED
OIL |
Mercury
FourStroke Oil 10W-30 |
|
ENGINE
PROTECTION OPERATOR |
SmartCraft Engine Guardian |
|
COMPATIBLE
WITH SMARTCRAFT |
Yes |
|
STARTING | Electric (turn-key) Smart Start Electric |
| CONTROLS | Mechanical throttle & shift |
|
STEERING |
Big tiller
compatible Dual cable mechanical Electro-Hydraulic power steering optional on duals Hydraulic power steering |
|
SHAFT LENGTH |
20"/508mm 25"/635mm |
|
GEARCASE RATIO |
1.92:1 |
|
DRY WEIGHT |
455lbs/206kg |
|
EMISSIONS
STAR RATING |
3 |
|
BORE &
STROKE |
4.0 x 3.6"/ 102 x 92mm |
|
IGNITION |
SmartCraft ECM 70 Digital Inductive |
|
FUEL SYSTEM |
Electronic
Fuel Injection (EFI) |
|
COOLING SYSTEM |
Water-cooled
with thermostat |
|
GEAR SHIFT |
F-N-R |
|
GEARCASE
OPTIONS |
Standard |
|
TRIM SYSTEM |
Power Tilt |
|
EXHAUST SYSTEM |
Through Prop |
|
SHALLOW WATER
TRIM RANGE |
20 deg |
|
COLOUR |
Phantom Black |
|
LUBRICATION
SYSTEM |
Wet sump |
| OIL CAPACITY | 6.0L |
| MAXIMUM TRIM RANGE | 22 deg (-6 to 16deg) |
| MAXIMUM TILT RANGE | 73 deg (-6 to 67deg) |
