07 4637 9511Experience nimble maneuvering and an output far beyond its size. Multiple trim positions. Underwater vents for quiet operation.
|
HP/KW |
6/4.4 |
|
ENGINE TYPE |
1 CYLINDER |
|
DISPLACEMENT (CID/CC) |
7.5/123 |
|
FULL THROTTLE RPM |
5000-6000 |
|
FUEL INDUCTION SYSTEM |
2-VALVE PUSHROD (OVERHEAD VALVE) |
|
RECOMMENDED FUEL |
87 OCTANE COMPATIBLE (UP TO 10%
ETHANOL) |
|
RECOMMENDED OIL |
MERCURY FOUR STROKE OIL 10W-30 |
|
ENGINE PROTECTION OPERATOR |
LOW OIL PRESSURE OVER-REV |
|
STARTING |
MANUAL |
|
STEERING |
TILLER |
|
SHAFT LENGTH |
15"/381mm 20"/508mm |
|
GEARCASE RATIO |
2.15:1 |
|
DRY WEIGHT |
57lbs/26kg |
|
CARB STAR RATING |
3 |
| EMISSIONS STAR RATING | 3 |
|
BORE & STROKE |
2.32 x 1.77"/59 x 45mm |
|
IGNITION |
CDI w/ ELECTRONIC SPARK ADVANCE |
|
FUEL SYSTEM |
CARBURETED |
|
COOLING SYSTEM |
WATER COOLED WITH THERMOSTAT |
|
GEAR SHIFT |
F-N-R |
|
GEARCASE OPTIONS |
STANDARD |
|
TRIM POSITIONS |
6 |
|
EXHAUST SYSTEM |
THROUGH PROP |
|
SHALLOW WATER DRIVE |
YES |
|
SHALLOW WATER TRIM RANGE |
16 deg |
|
INTEGRATED FUEL TANK |
1.1L |
|
COLOUR |
PHANTOM BLACK |

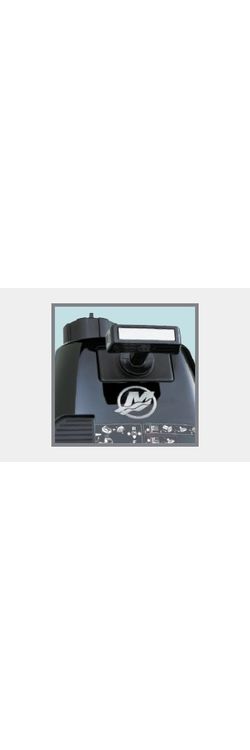

Easy to Start
Automatic
decompression bleeds off cylinder pressure to reduce the pulling force required
to start the engine.

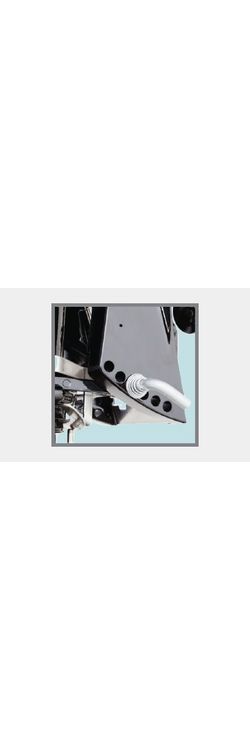

Quiet
Through-prop
exhaust on all Mercury® 4 - 6hp FourStrokes exits underwater for quiet
operation.
Shallow Water
Multiple
trim positions enhance performance and enable shallow-water operation.

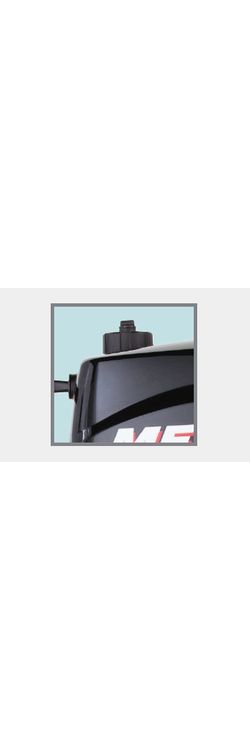

Fueling Options
Mercury®
4, 5 and 6hp FourStrokes feature integral fuel tanks with an external
fuel-shutoff valve, as well as a fuel-tank cap on top of the cowl. For extended
range, these engines also can be connected to a remote fuel tank placed in the
boat.
Lightweight
Weighing just 17 and 26 Kilograms, respectively, our 2.5 - 3.5hp and 4 - 6hp FourStroke outboards are easy to lift and carry.
