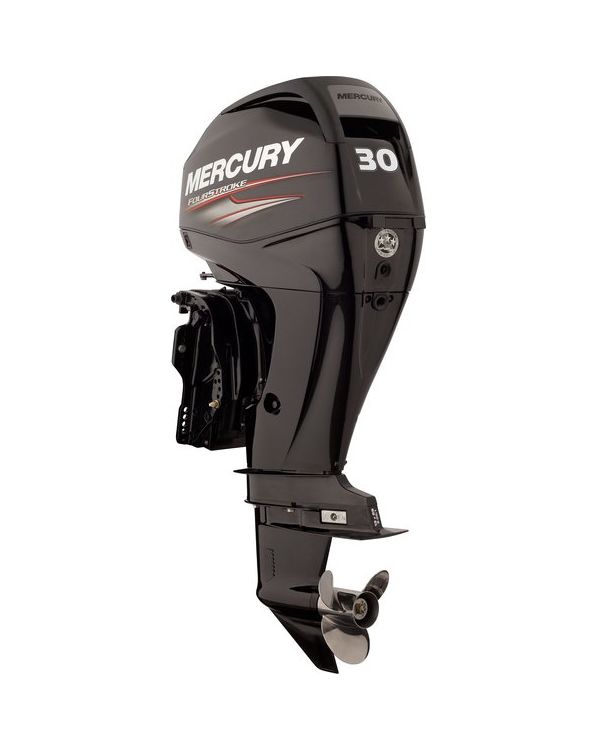

07 4637 9511Small, powerful, reliable. Battery-free electronic fuel injection. Crisp handling to keep you moving forward.
HP/KW |
30/22.4 |
ENGINE TYPE |
Inline 3 |
DISPLACEMENT
(CID/CC) |
32.1/526 |
FULL THROTTLE
RPM |
5250-6250 |
FUEL INDUCTION
SYSTEM |
2 valves per
cylinder, single overhead cam (SOHC) |
ALTERNATOR
AMP/WATT |
15 amp/
186 watt |
RECOMMENDED
FUEL |
87% octane /
up to 10% ethanol |
RECOMMENDED
OIL |
Mercury
FourStroke Oil 10W-30 |
ENGINE
PROTECTION OPERATOR |
Low oil
pressure Over-rev Overheat Sensor Failure |
STARTING |
Electric
(turn-key) |
STEERING |
Tiller Remote |
SHAFT LENGTH |
15"/381mm 20"/508mm |
GEARCASE RATIO |
1.92:1 |
DRY WEIGHT |
172lbs/ 78kg |
EMISSIONS
STAR RATING |
3 |
BORE &
STROKE |
2.40 x
2.36"/ 61 x 60mm |
IGNITION |
CDI w/
electronic spark advance |
FUEL SYSTEM |
Electronic
Fuel Injection (EFI) |
COOLING SYSTEM |
Water-cooled
with thermostat |
GEAR SHIFT |
F-N-R |
GEARCASE
OPTIONS |
Standard |
TRIM SYSTEM | Gas Assist |
EXHAUST SYSTEM |
Through Prop |
SHALLOW WATER
TRIM RANGE |
16 deg |
REMOTE FUEL
TANK |
25L |
COLOUR |
Phantom Black |
Spitfire and Spitfire Pontoon Propellers
The
advanced design of the Mercury® Spitfire® aluminium propeller combines four
aggressive blades with high rake angles and extra cup for tenacious holding and
25% quicker acceleration, with no loss in top speed compared to a three-blade
Mercury Black Max® propeller of the same pitch.
The
advanced design of the Mercury Spitfire Pontoon four-blade aluminium
propeller maximises blow-out resistance, with extra blade area for outstanding
hold in turns and extra thrust around the dock that pontoon boaters need and
demand. The Spitfire Pontoon propeller is available for 40 - 60hp Command
Thrust engines in 10-, 11- and 13-pitch sizes.
Electrical
Support
A
high-output alternator keeps batteries charged and fishing
electronics humming.
Dependable starts and performance
Battery-free Electronic Fuel Injection (EFI) on
Mercury 25 - 30hp FourStroke models delivers consistently easy starting, crisp
throttle response, increased fuel economy and outstanding
overall performance.
Great
acceleration/ more torque
Compact but powerful, Mercury® 15 - 30hp FourStroke outboards feature extra displacement and outstanding low-end torque that put a boat smartly on plane.
