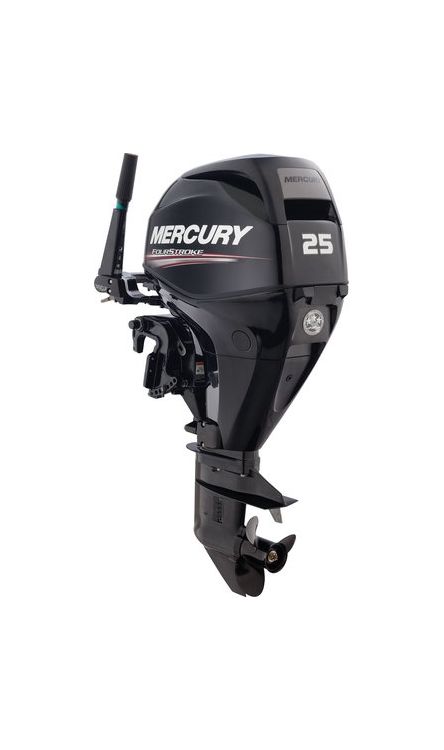

07 4637 9511Small, powerful, reliable. Battery-free electronic fuel injection. Crisp handling to keep you moving forward.
HP/KW |
25/18.6 |
ENGINE TYPE |
Inline 3 |
DISPLACEMENT (CID/CC) | 32.1/526 |
FULL THROTTLE
RPM |
5000-6000 |
FUEL INDUCTION
SYSTEM |
2 valves per
cylinder, single overhead cam (SOHC) |
ALTERNATOR
AMP/WATT |
15 amp/ 186
watt |
RECOMMENDED
FUEL |
87% octane /
up to 10% ethanol |
RECOMMENDED
OIL |
Mercury
FourStroke Oil 10W-30 |
ENGINE
PROTECTION OPERATOR |
Low oil
pressure Over-rev Overheat Sensor Failure |
STARTING |
Electric (turn-key) |
STEERING |
Tiller Remote |
SHAFT LENGTH |
15"/381mm 20"/508mm |
GEARCASE RATIO |
1.92:1 |
DRY WEIGHT |
157lbs/71kg |
EMISSIONS
STAR RATING |
3 |
BORE &
STROKE |
2.40 x 2.36"/ 61 x 60mm |
IGNITION |
CDI w/
electronic spark advance |
FUEL SYSTEM | Electronic Fuel Injection (EFI) |
COOLING SYSTEM |
Water-cooled
with thermostat |
GEAR SHIFT |
F-N-R |
GEARCASE
OPTIONS |
Standard |
TRIM SYSTEM | Manual Power Trim |
EXHAUST SYSTEM |
Through Prop |
SHALLOW WATER
TRIM RANGE |
16 deg |
REMOTE FUEL
TANK |
25L |
COLOUR |
Phantom Black |
Spitfire and Spitfire Pontoon Propellers
The advanced design of the Mercury® Spitfire® aluminium propeller combines four aggressive blades with high rake angles and extra cup for tenacious holding and 25% quicker acceleration, with no loss in top speed compared to a three-blade Mercury Black Max® propeller of the same pitch.
The advanced design of the Mercury Spitfire Pontoon four-blade aluminium propeller maximises blow-out resistance, with extra blade area for outstanding hold in turns and extra thrust around the dock that pontoon boaters need and demand. The Spitfire Pontoon propeller is available for 40 - 60hp Command Thrust engines in 10-, 11- and 13-pitch sizes.
Electrical Support
A high-output alternator keeps batteries charged and fishing electronics humming.
Dependable starts and performance
Battery-free Electronic Fuel Injection (EFI) on Mercury 25 - 30hp FourStroke models delivers consistently easy starting, crisp throttle response, increased fuel economy and outstanding overall performance.
Great acceleration/ more torque
Compact but powerful, Mercury® 15 - 30hp FourStroke outboards feature extra displacement and outstanding low-end torque that put a boat smartly on plane.
