07 4637 9511Explore faster with Humminbird’s XPLORE series — available in 9", 10" and 12" ultra-clear HD displays with Cross Touch™ control, Dual Spectrum CHIRP, MEGA Side Imaging+ and MEGA Down Imaging+.
Choose the configuration that suits your boat:
- CMSI+ – Complete package with Compact MEGA Side Imaging+ transducer (XM 14 HW CMSI T). Ready to install and run MEGA SI+, MEGA DI+ and CHIRP straight out of the box.
- CHO (Control Head Only) – Display only. Ideal if you’re pairing with a Minn Kota built-in MEGA Imaging trolling motor, adding a second networked unit, or using a thru-hull / specialised transducer.
All models include internal GPS, Humminbird Basemap, AutoChart Live, Wi-Fi, Bluetooth, Ethernet and NMEA 2000 for full One-Boat Network compatibility with Minn Kota and Cannon.
Select your screen size and transducer option above to build the XPLORE setup that matches your fishing style.

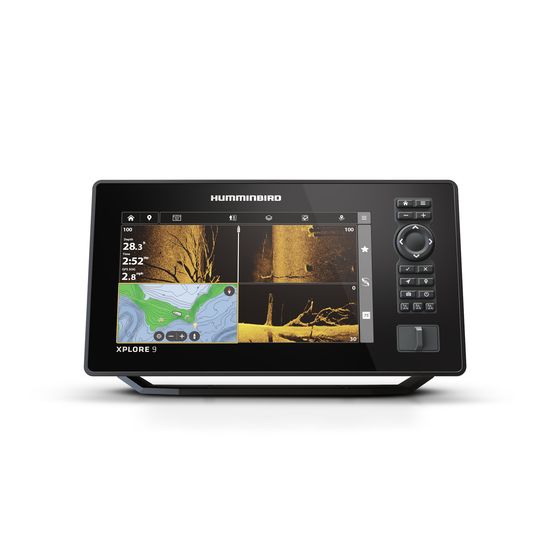

XPLORE 9 (CHO & CMSI+)
| Models | CHO (104674) · CMSI+ (104675) |
|---|---|
| Display Size | 9" (22.86 cm) |
| Resolution | HD 1280 × 720 |
| Interface | Cross Touch™ (touch + keypad) |
| Sonar Capability | MEGA Side Imaging+ · MEGA Down Imaging+ · Dual Spectrum CHIRP |
| MEGA SI+ Range | 800 ft (455 kHz) · 400 ft (MEGA) |
| MEGA DI+ Depth | 400 ft (455 kHz) · 200 ft (MEGA) |
| CHIRP Frequencies | Full 150–220 kHz · Narrow 180–240 kHz · Wide 140–200 kHz |
| Power Output | 1000 W RMS · 8000 W Peak-to-Peak |
| Power Input | 10–20 V |
| GPS | Internal dual-band GPS + Humminbird Basemap |
| Connectivity | Ethernet · NMEA 2000 · Wi-Fi · Bluetooth · MFi |
| Memory | Dual Micro SD |
| Waterproof Rating | IPX7 |
| Compatible With | MEGA Live 2 · MEGA 360 · Minn Kota Built-in MEGA SI/DI · One-Boat Network |
| Transducer (CMSI+ only) | XM 14 HW CMSI T (transom) |
| Transducer (CHO) | Not included – use with built-in MEGA or accessory transducer |
XPLORE 10 (CHO & CMSI+)
| Models | CHO (104677) · CMSI+ (104678) |
|---|---|
| Display Size | 10.1" (25.65 cm) |
| Resolution | WXGA 1280 × 800 |
| Interface | Cross Touch™ (touch + keypad) |
| Sonar Capability | MEGA Side Imaging+ · MEGA Down Imaging+ · Dual Spectrum CHIRP |
| MEGA SI+ Range | 800 ft (455 kHz) · 400 ft (MEGA) |
| MEGA DI+ Depth | 400 ft (455 kHz) · 200 ft (MEGA) |
| CHIRP Frequencies | Full 150–220 kHz · Narrow 180–240 kHz · Wide 140–200 kHz |
| Power Output | 1000 W RMS · 8000 W Peak-to-Peak |
| Power Input | 10–20 V |
| GPS | Internal dual-band GPS + Humminbird Basemap |
| Connectivity | Ethernet · NMEA 2000 · Wi-Fi · Bluetooth · MFi |
| Memory | Dual Micro SD |
| Waterproof Rating | IPX7 |
| Compatible With | MEGA Live 2 · MEGA 360 · Minn Kota Built-in MEGA SI/DI · One-Boat Network |
| Transducer (CMSI+ only) | XM 14 HW CMSI T (transom) |
| Transducer (CHO) | Not included – use with built-in MEGA or accessory transducer |
XPLORE 12 (CHO & CMSI+)
| Model | XTM 14 HW MSI T (or equivalent XTM kit) |
|---|---|
| Type | MEGA Side Imaging+ – trolling motor mount |
| Mount | Trolling motor lower unit (clamp / bracket) |
| Connector | 14-pin (XPLORE / APEX / SOLIX) |
| Sonar | MEGA SI+ · MEGA DI+ · Dual Spectrum CHIRP |
| Side Imaging | 455 kHz · 800 kHz · MEGA (ranges as per full-size MSI+) |
| Down Imaging | 455 kHz · 800 kHz · MEGA |
| Dual Spectrum CHIRP | Full / Narrow / Wide (150–240 kHz range) |
| Temperature Sensor | Yes (built-in) |
| Compatible With | XPLORE 9 / 10 / 12 · APEX · SOLIX · Minn Kota compatible mounts |
| Notes | Use when imaging from the trolling motor instead of (or as well as) the transom. Ideal with CHO head units paired to a non-built-in MEGA motor, or as a second imaging source. |
