07 4637 9511Reliable, proven performance from Humminbird’s HELIX series — available in 5" and 7" displays with CHIRP Digital Sonar, optional Down Imaging or Side Imaging, and built-in GPS with Humminbird Basemap.
Choose the configuration that suits your boat:
- CHIRP / DI models – Dual Spectrum CHIRP 2D sonar, or CHIRP + Down Imaging for a clear view of structure and fish beneath the boat.
- SI / MSI models – Side Imaging (or MEGA Side Imaging on supported 7" units) for coverage out to the sides, ideal for scanning banks, weed edges and structure.
- GPS models – Built-in GPS and chartplotting so you can mark waypoints, navigate and return to productive spots.
HELIX units are compact, easy to install and fully compatible with the One-Boat Network when paired with Minn Kota and Cannon products. Select your screen size and sonar package above to build the HELIX setup that matches your fishing style.
HELIX 5 CHIRP GPS G3
| Display | 5" colour TFT · 800 × 480 |
|---|---|
| Sonar | Dual Spectrum CHIRP (2D only) |
| Imaging | None |
| CHIRP Modes | Full 150–220 kHz · Narrow 180–240 kHz · Wide 140–200 kHz |
| Max Depth (2D) | 1,200 ft (standard transducer) |
| Power | 500 W RMS · 4,000 W Peak-to-Peak |
| GPS / Mapping | Internal GPS · Humminbird Basemap · AutoChart Live |
| Chart Compatibility | LakeMaster · CoastMaster · Navionics |
| Memory | Single Micro SD |
| Networking | No |
| Transducer | Included (transom CHIRP) |
| Interface | Soft-key keypad (no touchscreen) |
HELIX 5 CHIRP DI GPS G3
| Display | 5" colour TFT · 800 × 480 |
|---|---|
| Sonar | Dual Spectrum CHIRP + CHIRP Down Imaging |
| Imaging | Down Imaging (455 / 800 kHz) |
| CHIRP Modes | Full 150–220 kHz · Narrow 180–240 kHz · Wide 140–200 kHz |
| Max Depth (2D) | 1,200 ft |
| Down Imaging Depth | ~350–400 ft (455 kHz) |
| Power | 500 W RMS · 4,000 W Peak-to-Peak |
| GPS / Mapping | Internal GPS · Humminbird Basemap · AutoChart Live |
| Chart Compatibility | LakeMaster · CoastMaster · Navionics |
| Memory | Single Micro SD |
| Networking | No |
| Transducer | XNT 9 HW DI T (transom) |
| Interface | Soft-key keypad (no touchscreen) |

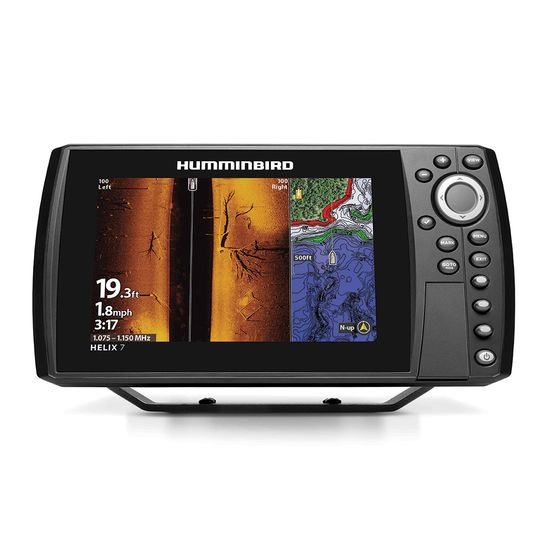

HELIX 7 CHIRP SI GPS G4
| Display | 7" colour TFT · 1024 × 600 |
|---|---|
| Sonar | Dual Spectrum CHIRP + CHIRP Side Imaging + CHIRP Down Imaging |
| Imaging | Standard SI (not MEGA) · DI |
| Side Imaging Range | 800 ft (455 kHz) · 250 ft (800 kHz) |
| Down Imaging Depth | 400 ft (455 kHz) · 125 ft (800 kHz) |
| Max Depth (2D) | 1,200 ft (standard) · up to 3,500 ft (optional 50 kHz) |
| Power | 500 W RMS · 4,000 W Peak-to-Peak |
| GPS / Mapping | Internal GPS · Humminbird Basemap · AutoChart Live |
| Chart Compatibility | LakeMaster · CoastMaster · Navionics |
| Map Card Included | No |
| Memory | Single Micro SD |
| Networking | No (G4) |
| Transducer | XNT 9 HW SI T (transom) |
| Interface | Soft-key keypad (no touchscreen) |
HELIX 7 Fishfinder SI G4 + CoastMaster
| Display | 7" colour TFT · 1024 × 600 |
|---|---|
| Sonar | Dual Spectrum CHIRP + CHIRP Side Imaging + CHIRP Down Imaging |
| Imaging | Standard SI (not MEGA) · DI |
| Side Imaging Range | 800 ft (455 kHz) · 250 ft (800 kHz) |
| Down Imaging Depth | 400 ft (455 kHz) · 125 ft (800 kHz) |
| Max Depth (2D) | 1,200 ft (standard) · up to 3,500 ft (optional 50 kHz) |
| Power | 500 W RMS · 4,000 W Peak-to-Peak |
| GPS / Mapping | Internal GPS · Humminbird Basemap · AutoChart Live |
| Chart Compatibility | LakeMaster · CoastMaster · Navionics |
| Map Card Included | Yes – CoastMaster Australia |
| Memory | Single Micro SD |
| Networking | No (G4) |
| Transducer | XNT 9 HW SI T (transom) |
| Interface | Soft-key keypad (no touchscreen) |
| Note | Same hardware as CHIRP SI GPS G4 – Australian pack with CoastMaster card |
HELIX 7 CHIRP MSI GPS G4
| Display | 7" colour TFT · 1024 × 600 |
|---|---|
| Sonar | Dual Spectrum CHIRP + MEGA Side Imaging + MEGA Down Imaging |
| Imaging | MEGA SI · MEGA DI |
| MEGA SI Range | ~125–250 ft either side (MEGA) · 800 ft (455 kHz) |
| MEGA DI Depth | ~125 ft (MEGA) · 400 ft (455 kHz) |
| Max Depth (2D) | 1,200 ft (standard) · up to 3,500 ft (optional 50 kHz) |
| Power | 500 W RMS · 4,000 W Peak-to-Peak |
| GPS / Mapping | Internal GPS · Humminbird Basemap · AutoChart Live |
| Chart Compatibility | LakeMaster · CoastMaster · Navionics |
| Map Card Included | No |
| Memory | Single Micro SD |
| Networking | No (G4) |
| Transducer | XNT 9 HW MSI 150 T (transom) |
| Interface | Soft-key keypad (no touchscreen) |
| Note | Up to ~3× more detail than standard SI |
HELIX 7 Fishfinder MSI G4 + CoastMaster
| Display | 7" colour TFT · 1024 × 600 |
|---|---|
| Sonar | Dual Spectrum CHIRP + MEGA Side Imaging + MEGA Down Imaging |
| Imaging | MEGA SI · MEGA DI |
| MEGA SI Range | ~125–250 ft either side (MEGA) · 800 ft (455 kHz) |
| MEGA DI Depth | ~125 ft (MEGA) · 400 ft (455 kHz) |
| Max Depth (2D) | 1,200 ft (standard) · up to 3,500 ft (optional 50 kHz) |
| Power | 500 W RMS · 4,000 W Peak-to-Peak |
| GPS / Mapping | Internal GPS · Humminbird Basemap · AutoChart Live |
| Chart Compatibility | LakeMaster · CoastMaster · Navionics |
| Map Card Included | Yes – CoastMaster Australia |
| Memory | Single Micro SD |
| Networking | No (G4) |
| Transducer | XNT 9 HW MSI 150 T (transom) |
| Interface | Soft-key keypad (no touchscreen) |
| Note | Same hardware as CHIRP MSI GPS G4 – Australian pack with CoastMaster card |
