07 4637 9511Step up to Humminbird’s flagship APEX series — available in 13", 16" and 19" ultra-bright HD displays with Cross Touch™ control, Dual Spectrum CHIRP, MEGA Side Imaging+ and MEGA Down Imaging+.
Choose the configuration that suits your boat:
- With transducer – Complete package including MEGA Side Imaging+ transducer. Ready to install and run MEGA SI+, MEGA DI+ and CHIRP straight out of the box.
- CHO (Control Head Only) – Display only. Ideal if you’re pairing with a Minn Kota built-in MEGA Imaging trolling motor, adding a networked second unit, or using a thru-hull / specialised transducer.
All models include internal GPS, Humminbird Basemap, AutoChart Live, Wi-Fi, Bluetooth, Ethernet and NMEA 2000 for full One-Boat Network compatibility with Minn Kota and Cannon. APEX also supports MEGA Live 2, MEGA 360 and advanced networking for multi-unit systems.
Select your screen size and transducer option above to build the APEX setup that matches your fishing style.

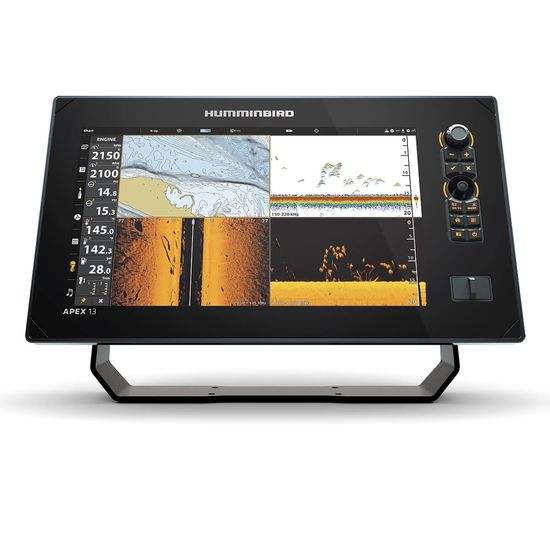

APEX 13 (CHO & MSI+)
| Models | CHO · MSI+ (with transducer) |
|---|---|
| Display Size | 13.3" (33.8 cm) |
| Resolution | Full HD 1920 × 1080 |
| Interface | Cross Touch™ (touch + keypad) |
| Sonar Capability | MEGA Side Imaging+ · MEGA Down Imaging+ · Dual Spectrum CHIRP |
| MEGA SI+ Range | 800 ft (455 kHz) · 500 ft (MEGA) · 250 ft (800 kHz) |
| MEGA DI+ Depth | 400 ft (455 kHz) · 250 ft (MEGA) · 125 ft (800 kHz) |
| 2D CHIRP Max Depth | 1,200 ft (standard) · up to 3,500 ft (optional Airmar) |
| Power Output | 1000 W RMS · 8000 W Peak-to-Peak |
| Power Draw | ≈ 3.1 A |
| Power Input | 10.8–20 V DC |
| GPS | Internal GPS + Humminbird Basemap |
| Connectivity | Dual Ethernet · NMEA 2000 · Wi-Fi · Bluetooth · HDMI In/Out |
| Memory | Dual Micro SD |
| Compatible With | MEGA Live 2 · MEGA 360 · Minn Kota Built-in MEGA SI/DI · One-Boat Network · Radar · AIS |
| Transducer (MSI+) | XM 14 HW MSI T (transom) |
| Transducer (CHO) | Not included – use with built-in MEGA or accessory transducer |
APEX 16 (CHO & MSI+)
| Models | CHO · MSI+ (with transducer) |
|---|---|
| Display Size | 15.6" (39.6 cm) |
| Resolution | Full HD 1920 × 1080 |
| Interface | Cross Touch™ (touch + keypad) |
| Sonar Capability | MEGA Side Imaging+ · MEGA Down Imaging+ · Dual Spectrum CHIRP |
| MEGA SI+ Range | 800 ft (455 kHz) · 500 ft (MEGA) · 250 ft (800 kHz) |
| MEGA DI+ Depth | 400 ft (455 kHz) · 250 ft (MEGA) · 125 ft (800 kHz) |
| 2D CHIRP Max Depth | 1,200 ft (standard) · up to 3,500 ft (optional Airmar) |
| Power Output | 1000 W RMS · 8000 W Peak-to-Peak |
| Power Draw | ≈ 4.3 A |
| Power Input | 10.8–20 V DC |
| GPS | Internal GPS + Humminbird Basemap |
| Connectivity | Dual Ethernet · NMEA 2000 · Wi-Fi · Bluetooth · HDMI In/Out |
| Memory | Dual Micro SD |
| Compatible With | MEGA Live 2 · MEGA 360 · Minn Kota Built-in MEGA SI/DI · One-Boat Network · Radar · AIS |
| Transducer (MSI+) | XM 14 HW MSI T (transom) |
| Transducer (CHO) | Not included – use with built-in MEGA or accessory transducer |
APEX 19 (CHO & MSI+)
| Models | CHO · MSI+ (with transducer) |
|---|---|
| Display Size | 18.5" (47.0 cm) |
| Resolution | Full HD 1920 × 1080 |
| Interface | Cross Touch™ (touch + keypad) |
| Sonar Capability | MEGA Side Imaging+ · MEGA Down Imaging+ · Dual Spectrum CHIRP |
| MEGA SI+ Range | 800 ft (455 kHz) · 500 ft (MEGA) · 250 ft (800 kHz) |
| MEGA DI+ Depth | 400 ft (455 kHz) · 250 ft (MEGA) · 125 ft (800 kHz) |
| 2D CHIRP Max Depth | 1,200 ft (standard) · up to 3,500 ft (optional Airmar) |
| Power Output | 1000 W RMS · 8000 W Peak-to-Peak |
| Power Draw | ≈ 4.4 A |
| Power Input | 10.8–20 V DC |
| GPS | Internal GPS + Humminbird Basemap |
| Connectivity | Dual Ethernet · NMEA 2000 · Wi-Fi · Bluetooth · HDMI In/Out |
| Memory | Dual Micro SD |
| Compatible With | MEGA Live 2 · MEGA 360 · Minn Kota Built-in MEGA SI/DI · One-Boat Network · Radar · AIS |
| Transducer (MSI+) | XM 14 HW MSI T (transom) |
| Transducer (CHO) | Not included – use with built-in MEGA or accessory transducer |
