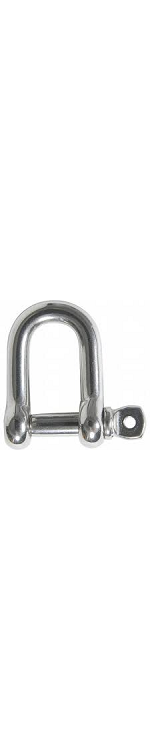

07 4637 9511Stainless steel D shackle with captive pin offers an unremovable pin
perfect for marine situations removing the chance of dropping the pin into the water
CODE | PIN DIA | HEIGHT | WIDTH | TDL (KGS) |
56093 | 5mm | 22.5mm | 13mm | 550 |
56095 | 6mm | 24.5mm | 14.7mm | 720 |
56096 | 7mm | 28.6mm | 17.3mm | 1120 |
56097 | 10mm | 35.6mm | 22.6mm | 1600 |
56098 | 12mm | 42.4mm | 25mm | 2400 |
56098A | 14mm | 50.1mm | 28.2mm | 4400 |
