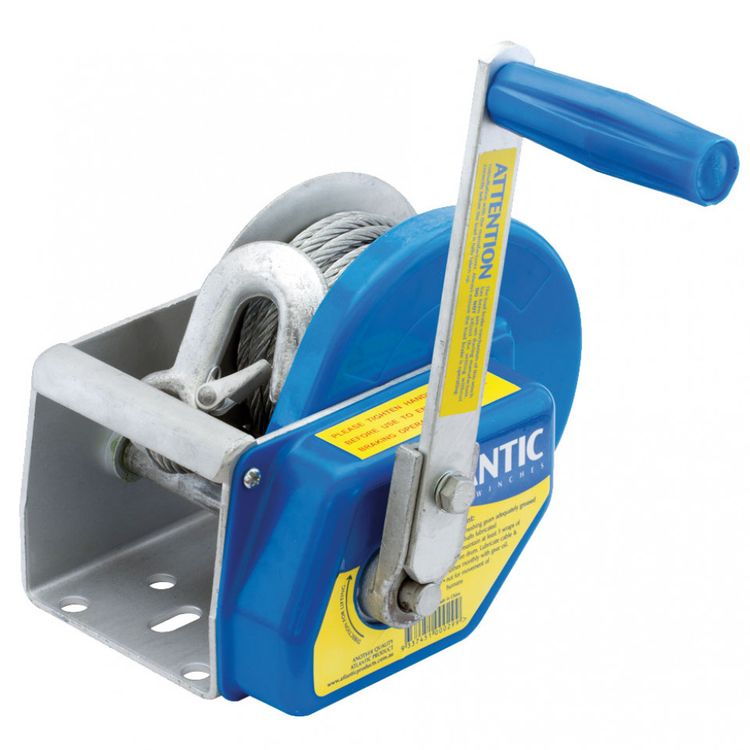

07 4637 9511The Atlantic range of Brake Winches are available in 3 different sizes
3:1 - 5:1 and 10:1.The range offer the option of cable,Atlantic rope or no cable
and are suitable for pulling or lifting. The self actuating automatic braking mechanism ensures
the suspension of loads and jerk-free movement when lowering a load under pressure.
The carbon copper fibre brake pads also ensure that a load is always secured under breaking load.
| PART NO | APPLICATION | GEAR RATIO | DIRECT LIFT CAPACITY (KG) | CABLE TYPE | HOOK TYPE | DRUM HUB (MM) | FLANGE DIAMETER (MM) | DRUM WIDTH I.D (MM) | MAX CABLE/ROPE CAPACITY |
| 542696 | Lifting | 5:1 | 300 | 7.5mx5mm Rope | Snap Hook | 50 | 130 | 50 | 20m x 5mm |
| 542730 | Lifting | 5:1 | 300 | 7.5mx5mm Cable | Snap Hook | 50 | 130 | 50 | 20m x 5mm |
| 542732 | Lifting | 5:1 | 300 | No Cable | No Hook | 50 | 130 | 50 | 20m x 5mm |
| 542698 | Lifting | 10:1 | 500 | 7.5mx6mm Rope | Snap Hook | 50 | 130 | 50 | 9.5m x 6mm |
| 542731 | Lifting | 10:1 | 500 | 7.5mx6mm Cable | Snap Hook | 50 | 130 | 50 | 9.5m x 6mm |
| 542733 | Lifting | 10:1 | 500 | No Cable | No Hook | 50 | 130 | 50 | 9.5m x 6mm |
